A remote light control system consists of three essential components:

• 12/24V LED driver
• Single zone controller
• Control device (remote control or control panel)

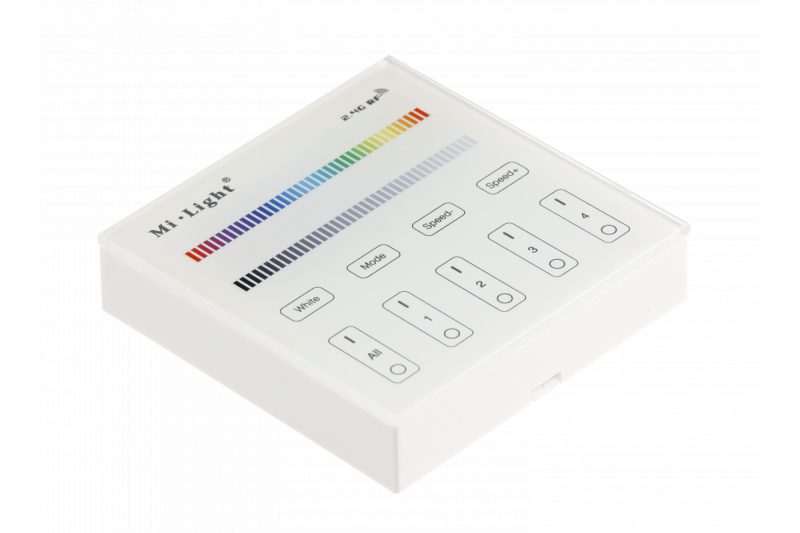

A touch panel is one of the two available control devices. The panel can be used to control 4 zones independent of each other. Many single controllers responsible for a single light point can be assigned to each zone.

The panel is powered by two AAA batteries (not included in a set).

On the panel we will find:

• MASTER switch – makes it possible turn on and off all zones at the same time
• 4 switches - responsible for activating each zone separately
• Slider - with which we can dim and lighten the strip
• Slider – with which we can change the RGB colour
• Lighting mode selection button
• Buttons for changing the speed of the lighting modes
• Button to turn on white colour for all zones

Zone coding

It is necessary to determine to which partition the controller is to be encoded. Then we disconnect the power supply of the controller for at least 10 seconds. After reconnecting the power supply the ON button of the selected zone should be pressed 3 times within 3 seconds. Correct pairing is signalled by the LED strip blinking 3 times.

To activate the night lighting function, that is, the maximum dimming of the LED strip, the OFF Master or OFF button of the selected zone should be held.

In order to turn on the white colour for the selected zone, the ON button of the selected zone should be held longer.

The panel is mounted by screwing/sticking the mounting plate to the selected surface. Then, the panel is inserted into the mounting plate.

• Communication range up to 30 m;
• Possibility to pair 4 controllers;
• Night lighting function;
• Predefined colour changing modes;
• Batteries are not included in a set.
