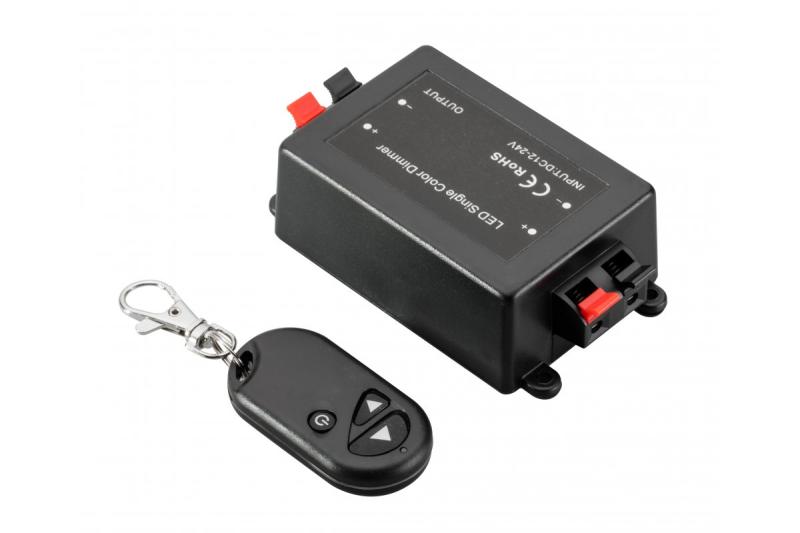

JACKY dimmer is responsible for stable and smooth regulation of the brightness of LED light sources. The dimmer also functions as a switch in this case.
The receiver is plugged into the installation between the LED driver and the light source. Uninsulated cable ends are inserted into spring quick connectors in the body. One should remember about the correct polarity - the red input is +, and the black -.
The transmitter has the form of a small remote control with three buttons responsible for turning the light on and off as well as its dimming and brightening.
The remote control is powered by an A27 battery. The battery is included in a set. The range of the remote control is up to 50 m (depending on ambient conditions).
Jacky switch can work with both 12 V and 24 V. Depending on the voltage, the maximum permissible load changes:
| Merk | GTV |
| Kleur | Zwart/wit |
| Serie | Jacky |
| Materiaal | Kunststof |
| EAC-certificaat | Ja |
| CE-certificaat | Ja |
| Stroomtoevoer huidig | DC |
| Beschermingsklasse IP | 20 |
| Spanning [V] | gru.24 |
| Beschermingsklasse tegen elektrische schok. | III |
| Aanvullende informatie | gecodeerd |
| Plaats van installatie | muur, plafond |
| Gewicht [g] | 680 |
| Maximaal toelaatbare belasting [W] | 90/180 |
| Maximale belastingsstroom [A] | 8 |
