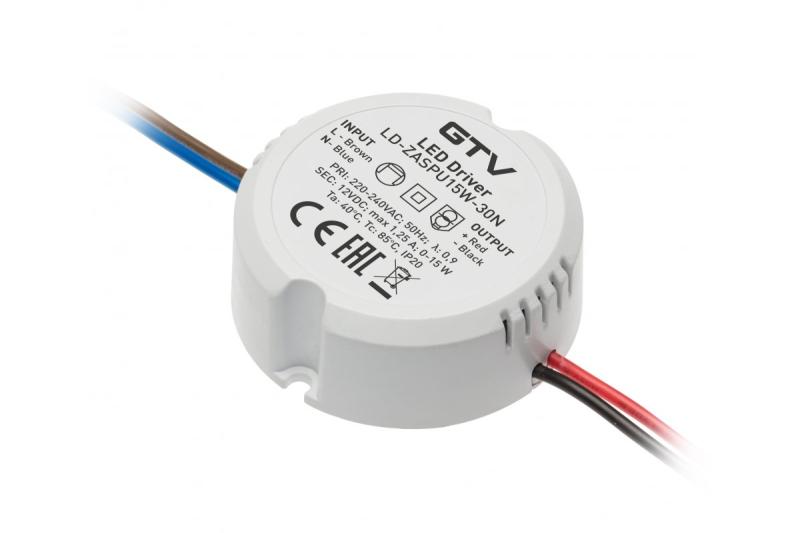

A LED driver reduces the input voltage of 220-230 V to 12 V. Thanks to this, it can be used to power most LED strips of furniture fittings. The LED driver from GTV has short-circuit and overload protection, which increases the safety of its use.
The LED driver is mounted in a standard ∅ 60 mm installation box, directly behind the switch. On one side 220 V LED driver should be brought to the box, and on the other side (at the output) there should be cables supporting 12 V.
Devices with a maximum total power consumption of 15 W can be connected to the LED driver. At the same time, it is important to remember that if the LED driver has to work for a long time, it should not work at its full power. The recommended reserve should be around 1.5 W.
| Merk | GTV |
| Serie | Unix |
| Materiaal | Kunststof |
| Uitgangsspanning | 12, DCV |
| Beschermingsklasse IP | 20 |
| Beschermingsklasse tegen elektrische schok. | II |
| Voeding [V, Hz] | 5, Washington D.C. |
| Lengte van het snoer met stekker [m] | 1 |
| Moc [W] | 15 |
