The current trend is to move away from light points in favor of linear lighting, which is based on LED strips.
LED strips are popular due to their low price and proven quality. Of course, their reliability largely depends on carefully carried out assembly.
During operation, the belt generates heat that must be dissipated from it. Otherwise, the tape may wear out prematurely. Special aluminium GLAX profiles are used to dissipate heat from the belt. In order to effectively dissipate heat from the tape to the aluminum profile, the tape must adhere to it with its entire surface. Therefore, before pasting the LED strip into the GLAX profile, it is necessary to degrease its center.
LED strips find a wide range of applications both in homes and office spaces. You can use them to illuminate the kitchen, dressing room, reception, showcases and even walls and ceilings.
In the case of CCT tapes, it is possible to change the color of light from warm to cold. Dedicated switches allow for such regulation:

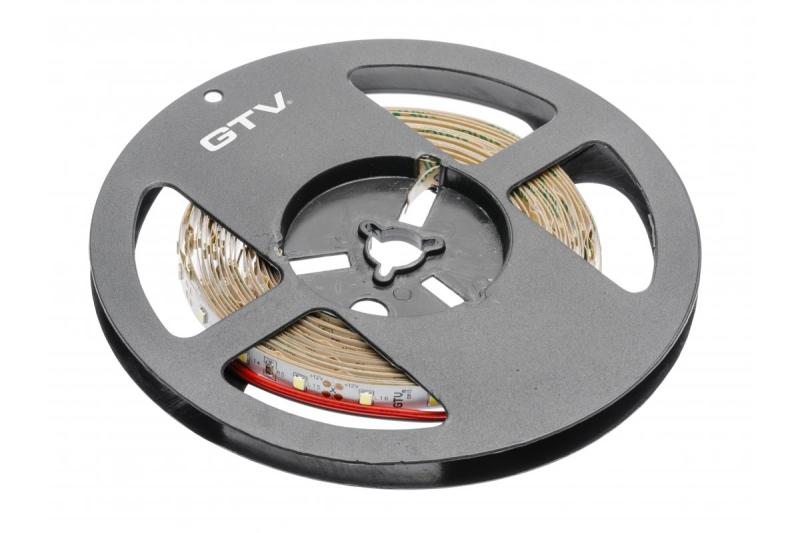

LED strip 2835 CCT with its entire length, i.e. 5 m, consumes 30 W, while 1 meter consumes only 10 W. The strip can be cut every 5 cm, remembering that the cut should be made in a specially marked place.
An important parameter of LED strips is the density of the arrangement of diodes. The more densely they are arranged, the more even the line of light we get. In this case, 600 diodes are arranged along the entire length of the tape, i.e. 120 / m (60 diodes 3200 K and 60 diodes 6500 K).
You should also pay attention to the width of the LED strip to be able to paste it into the profile without any problems. This index is 8 mm wide.
| Merk | GTV |
| Serie | Taśma Led Flash |
| Lengte | 5m |
| Dimbaar | Ja |
| Kleur temperatuur | CctK |
| Stralingshoek | 120 |
| Energieklasse | A++, A |
| Beschermingsklasse IP | 20 |
| Beschermingsklasse tegen elektrische schok. | III |
| Aantal diodes per 1 m | 120 |
| Stripbreedte [mm] | 8 |
| Vermogen [VDC; W/m] | 12; 10 |
